Getting Connected to Falco

Overview

For plan selection and an overview of audit and write permissions, see Falco setup and access. Confirm the connection details with our team before applying this guide to your environment.

There are three steps to get devices ready to be scanned by Falco:

  1. Add a service account for Falco to use
  2. Allow Falco to remotely access the device(s) API
  3. Connect the device in Falco and review your first audit

Connecting Multiple Devices

If you have multiple devices to connect, you will need to repeat the configuration for each device. For Panorama managed devices, only a single connection and service account are required. Falco will automatically scan all devices connected to the Panorama. Lite allows up to five direct connections to firewalls or Panorama instances. Firewalls discovered through Panorama have no device-count limit, and VSYS children do not count toward the five direct connections.

1. Create the Falco Service Account

Both Panorama and individual firewalls require a service account to be created. These steps are the same for both.

  1. Go to Device > Administrators (Panorama > Administrators if on a Panorama) and click Add at the bottom of the page to add a new local admin
  2. Give the new account a name (we prefer falco, but it’s not critical that you use the same name)
  3. Generate a secure password and enter it in the password fields. Keep these credentials available to enter in Falco’s device setup in the final step

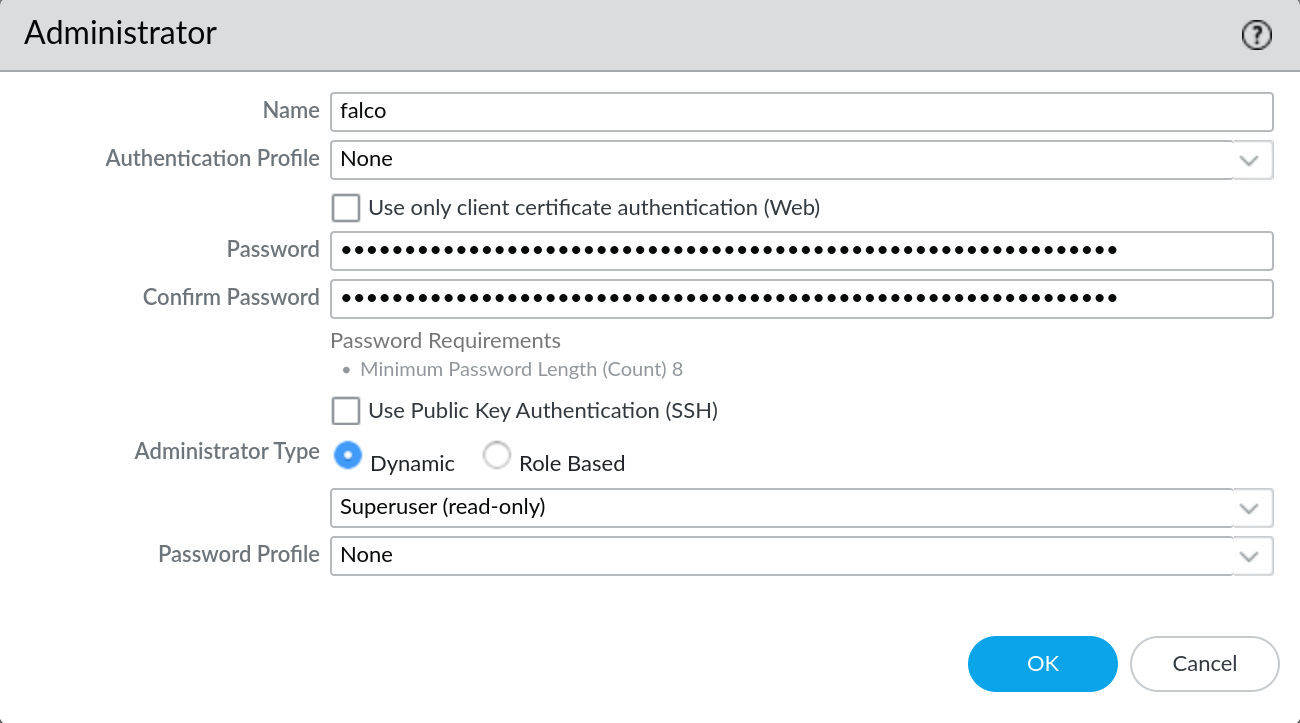

  4. Ensure the Administrator Type field is set to Dynamic and the role is set to Superuser (read-only) PAN-OS administrator settings with the Superuser read-only role selected
  5. Click OK and then commit the configuration changes

2. Allow Remote API Connections

In order for Falco to query the device configuration, it needs to be able to remote access the devices API. The API can be enabled on either the management interface or a dataplane interface, whichever is more convenient for your environment.

If HTTPS access is already configured, verify that Falco’s source addresses are permitted before connecting the device.

For Edge Firewalls

For devices connected directly to the public internet, we recommend that you create an Interface Management profile and attach it to one of your external facing interfaces. Here is an outline of how to accomplish this:

  1. Go to Network > Profiles > Interface Mgmt and either add a new profile or reuse an existing external management profile

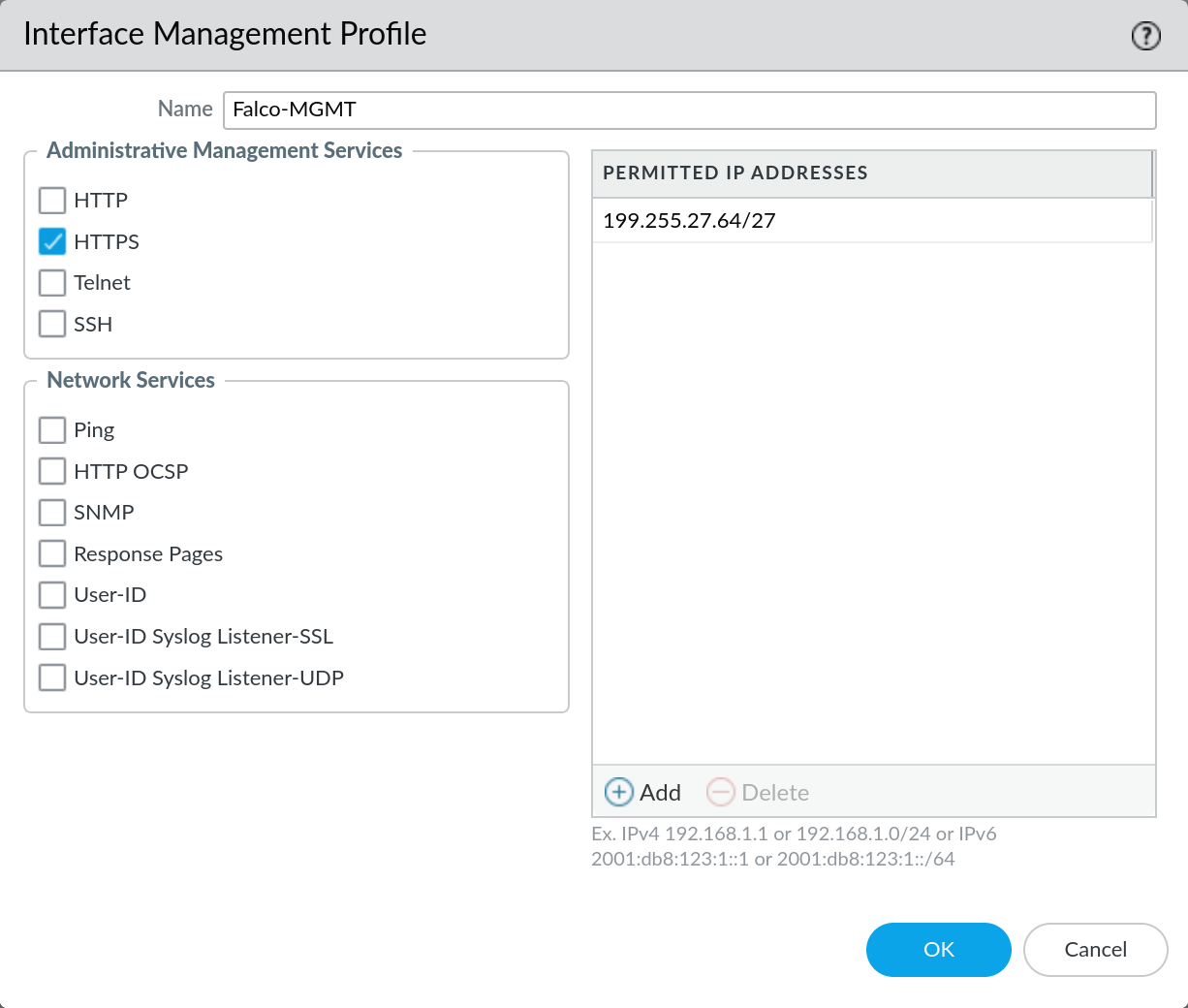

  2. On the Interface Management Profile, ensure that HTTPS is enabled, add 199.255.27.64/27 (our datacenter IP range) to the Permitted IP Addresses pane on the right, then click OK Interface management profile allowing HTTPS from Falco’s source address range
  3. Go to Network > Interfaces and edit the external interface with the external IP Falco will connect to

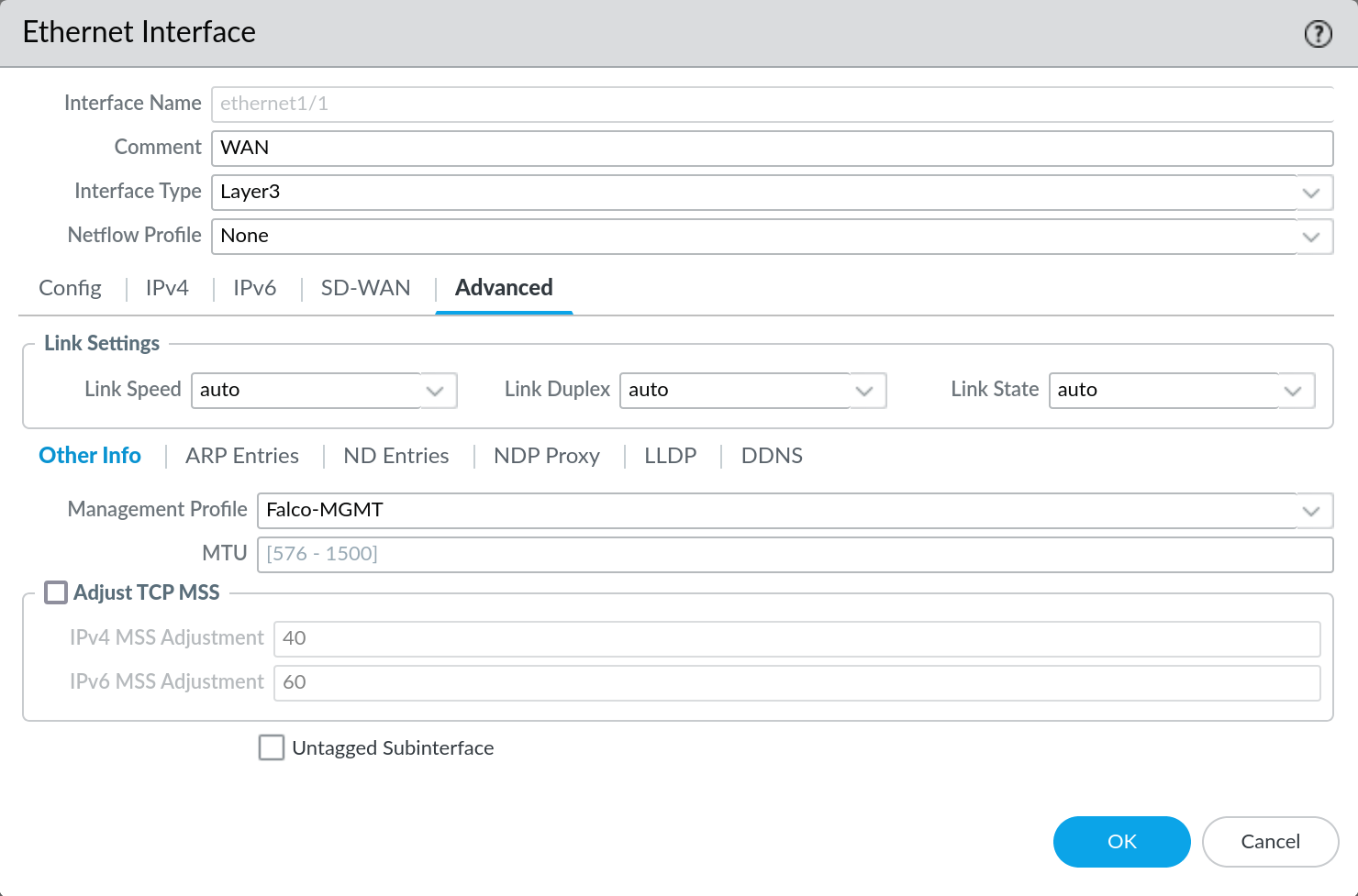

  4. In the interface, select the management profile under Advanced > Other Info > Management Profile, then click OK Ethernet interface settings with the management profile assigned
  5. Commit the configuration changes

Note that you may need additional security policies to allow this traffic depending on how your rulebase is configured.

For Internal Firewalls or Panoramas

Falco connects from 199.255.27.64/27 to the edge firewall’s external IP. Destination NAT forwards the connection to the internal firewall or Panorama management IP while preserving the source address. All connections use TLS 1.2 or later.

For devices that are not directly connected to the public internet, we recommend that you create a Destination Network Address Translation (DNAT) rule to forward connections headed to your external IP to the internal IP of your firewall/Panorama. Here’s a general outline of how to accomplish this:

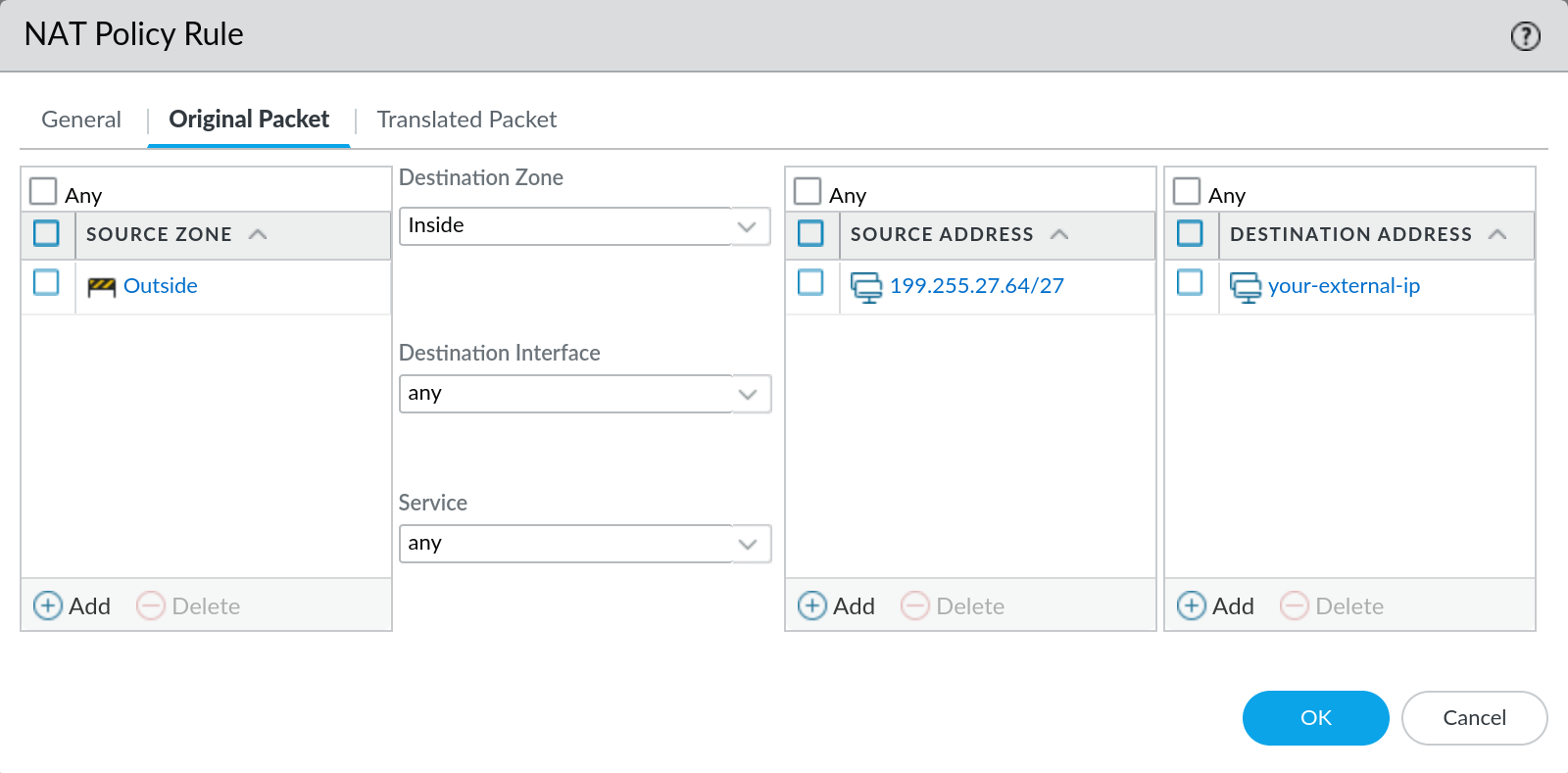

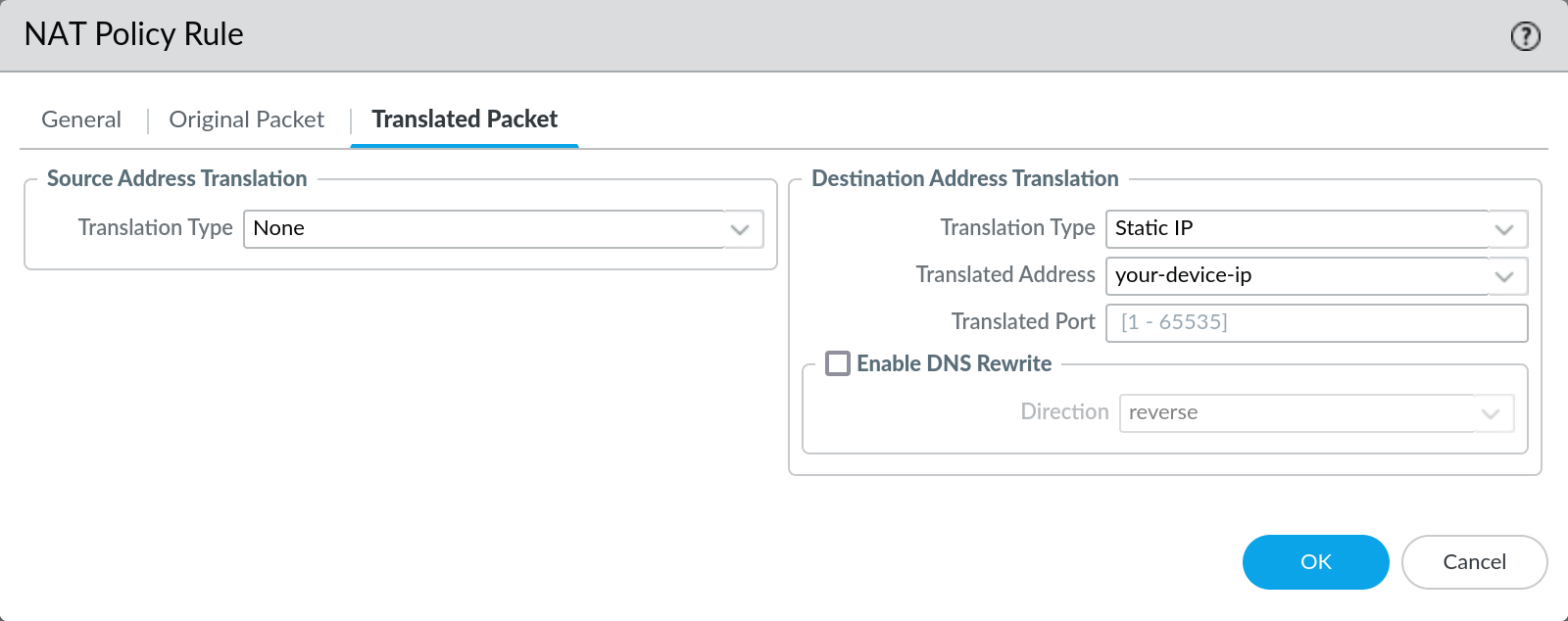

  1. On your edge firewall, create a DNAT policy that translates the destination IP on incoming connections from the external IP to the internal IP of your device. NAT rule original packet settings for Falco connections to the external IP NAT rule destination translation to the internal management IP

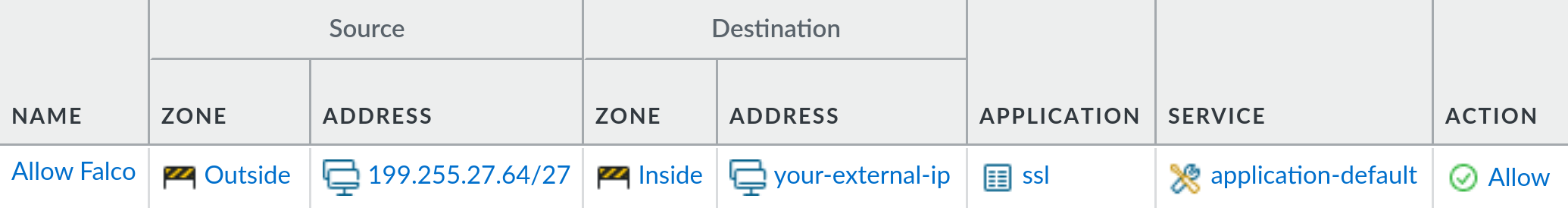

  2. Create a corresponding security rule that allows ssl from 199.255.27.64/27 (our datacenter IP range) to the external IP you’ve chosen. Since this rule allows NAT’d traffic be sure to use the pre-NAT destination IP address and the post-NAT destination zone. Security policy allowing Falco HTTPS traffic to the translated destination
  3. Commit the configuration changes

3. Connect Your Device

Create your free Falco Lite account and verify your email. Follow the device setup steps to enter the connection address, review certificate trust, and provide the service account credentials. MFA is optional for new Lite accounts; you can add an authenticator app or passkey from your account settings.

Connecting your first device starts the initial audit. Once it completes, open the report to review findings and remediation guidance. Lite continues with free monthly audits.

Getting Help

If you have any questions or need help with this process, please reach out to us at support@digitalscepter.com and we will be happy to assist you.
